Fiberglass Equipment Enclosures
Maintaining the life of your equipment is a crucial part of a successful operation. At TRACOM, we understand and are proud to offer a number of different enclosure styles to protect your equipment. All of our sized-to-fit equipment, including the Model 200-001 portable enclosure and the free-standing Model 200-095 are manufactured with the same level of skill and precision.
Fiberglass Enclosure Features
All TRACOM enclosures feature stainless steel hardware. This minimizes maintenance requirements and extends the life of the product. Encapsulated 1″ polyurethane foam is provided standard on all Model 200-011, -021, -041, -071, -091, and -095 enclosures.
Fiberglass Enclosure Options and Accessories
To make the most of your enclosure, TRACOM offers a list of options and accessories. Choose from the following items when making your purchase:
- Adjustable louvers
- Thermostatically controlled heaters
- Exhaust fans
- Integral floors
- GFCI outlets
- And a wide choice of gel coat colors to choose from
- Instrument shelves
- Duplex breaker boxes
Fiberglass Enclosure Applications
Fiberglass equipment enclosures are used for a variety of applications. The following are specific models and their corresponding purpose.
Enclosure 200-001
- Two piece construction for easy instrument access
- Two convienent carrying handles
- Stainless steel piano hinge
- Stainless steel lockable hasp
- 30" Diameter x 38" H
Enclosure 200-011
- Open base for easy installation
- Stainless steel hardware
- -010: 24" W x 24" D x 26"
- 18" x 18" door
- -011: 26" W x 36" D x 38" H
- 30" x 30" door
Enclosure 200-021
- Open base for easy installation
- Locking front and top access
- Stainless steel hardware
- 36" W x 36" D x 53" H
- 30" x 30" Front door

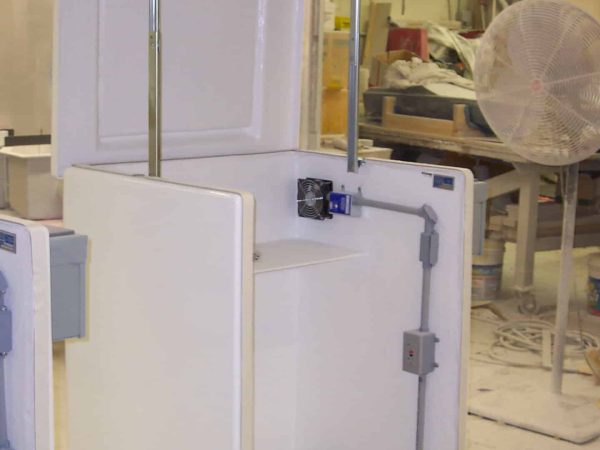

Enclosure 200-041
- Swinging gullwing door with two self locking support arms.
- Secure with locking hasp
- Stainless steel hardware
- Intergral floor
- 35” W x 28” D x 47” H
Enclosure 200-060
- Fully opening with chain stop
- Stainless steel hardware
- -040: 40" W x 21" D x 29" H
- -060: 60" W x 21" D x 29" H
- -080: 80" W x 21" D x 29" H
Enclosure 200-071
- Swinging gullwing door with two self locking support arms.
- Secure with locking hasp
- Four carrying handles
- Molded rain gauge/ solar panel cavity
- Stainless steel hardware
- Intergral floor
- Sized for ISCO 6712 Portable
Enclosure 200-091
- Front and top doors with key locked T-handles
- External mounting flange with integral floor for secure installation
- Four fixed aluminium louvers
- Self Locking support arm
- Stainless steel hardware
- Sized for ISCO 6712FR
Enclosure 200-095
- Front and top doors with key locked T-handles
- External mounting flange with integral floor for secure installation
- Four fixed aluminium louvers
- Self Locking support arm
- Stainless steel hardware
- Sized for the ISCO (4700/5800)

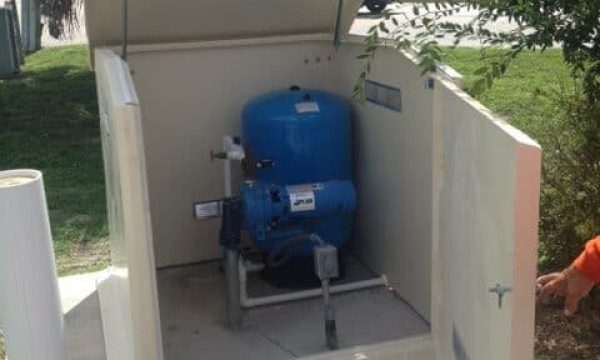

Enclosure 200-099
- Front and top doors with key locked T-handles
- External mounting flange with integral floor for secure installation
- Four fixed aluminium louvers
- Self Locking support arm
- Stainless steel hardware
- 45” W x 52” D x 43” H
Enclosure 200-161
- Modular construction allows for easy installation over existing pumps.
- Front door mounted with stainless steel hardware
- Side doors mounted with bolts
- Minimal wall space makes mounting difficult
- 77” W x 77” D x 58” H
